Z94-F機械計米器是根據用戶需要設計而成用于測量長度和各種機械傳動的記錄器，一般用于紡織、印染、塑料薄膜，人造皮革等放量長度的記錄。
本器為五位數，計數范圍1-99999，當記錄長度為1m時（或1碼時）滾動輪轉三圈，計數器數字顯示1，依次類推，逢十進位，但不能逆向計數傳動比為：1：3，最高計數速度：200次/分。
本器裝有復零機構，復零采用旋轉式，旋轉一周號碼全為"0"字，然后作第二階段計數，使用極為方便。
本器跳號靈活，計數正確，號碼顯示清晰，工作環境溫度在-20℃～＋60℃，仍能保持正常計數。
Z94-F型五位測長度計數器是用于測量長度和各種機械傳動的計數器,一般用于紡織.印染.塑料薄膜.人造皮革等放量長度的記錄。(1)本計數器為五位數,當記錄長度1m時(或1碼時)滾動輪轉三圈,計數器數字顯示1,依此類推,逢十進位.但不能逆向計數。（2）本計數器裝有復零機構,復零采用旋轉式,旋轉一周號碼全為"0",然后作第二階段計數。
技術參數:
| 計數范圍 |
0-99999 |
| 轉動比 |
1 : 3 |
| 最高計數速度 |
200次/分 |
| 溫度范圍 |
-10度--60度 |

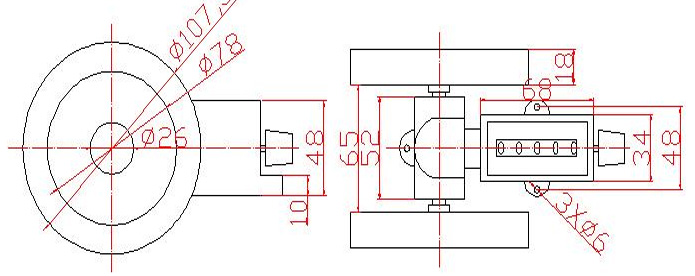

安裝尺寸：
Designed according to uses'requirements,this counter is a recorder of ength and various mechanical transmissions. Commonly it is used to record the length range in the professions of Textile, Printing and Dyeing, Membrane, ang Man-made Leather.
This counter is five-digital with counting range of 1-99999. When the recorded length is one meter or one yard, the scrolling wheel turns three circles, indicating "1".Thereby the counter dots and carries one. But it can't count widdershins.The transmission rate is 1:3.The highest counting speed is 200 times/min.
This counter is staffed with a zero reset facility. The facility adopts revolving style. If it whirls one circle, the figure is turned to zero. Then the counter stars counting for the second stage.Therdfore it is very convenient to use.
Changing the digit flexibly and indicating the figures clearly, this counter records the numbers precisely. It can operate normally even if the temperature of the working environment shifts from-20℃～＋60℃
